2 and 3 Way Actuated Ball Valves

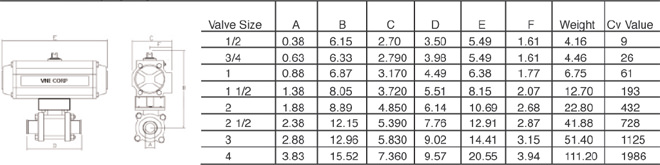

Dimensions 2-way Spring Return Actuated Valve
![](/portals/3/images/23-way-chart1.jpg)

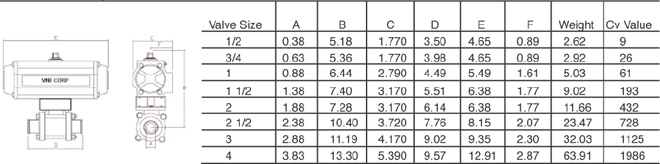

Dimensions 2-way Air to Air Actuated Valve
![](/portals/3/images/23-way-chart2.jpg)

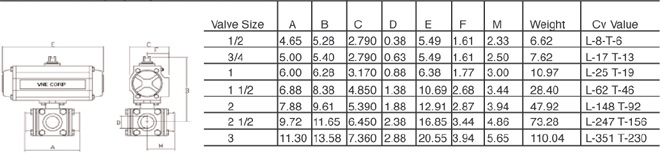

Dimensions 3-way Spring Return Actuated Valve
![](/portals/3/images/23-way-chart3.jpg)

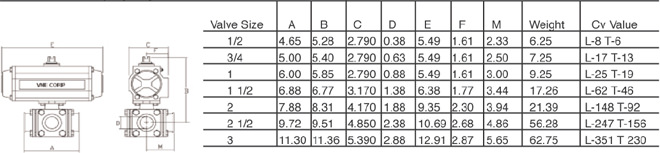

Dimensions 3-way Spring Return Actuated Valve
![](/portals/3/images/23-way-chart4.jpg)
All valves sized for 80 PSI clean liquid products

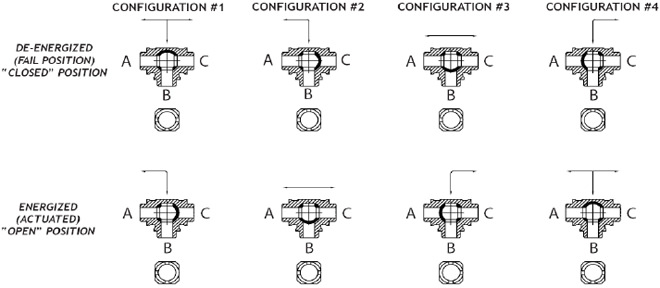

3-WAY BALL VALVE CONFIGURATION OPTIONS
Standard Actuator (CW to Close, CCW to Open)
T-Port Design
L-Port Design
Reverse - Acting Actuator (CCW to Close, CW to Open)
T-Port Design
L-Port Design
