Butterfly Valves - Pneumatically Operated
PNEUMATICALLY OPERATED BUTTERFLY VALVE INFORMATION
Air to open, spring to close is standard.
Unique design provides higher torque at final closing of disc.
One actuator fits 1˝ through 4˝ valves.
Air pressure required 73-108 psi to operate actuator.
No spare parts required.
Maintenance free actuator.
TECHNICAL APPLICATION DATA
Maximum product pressure 10 Bar / 145 psi
Maximum short time sterilization temperature:
130° C / 266° EPDM
130° C / 266° Silicon
140° C / 284° Viton
Minimum product temperature 14°F

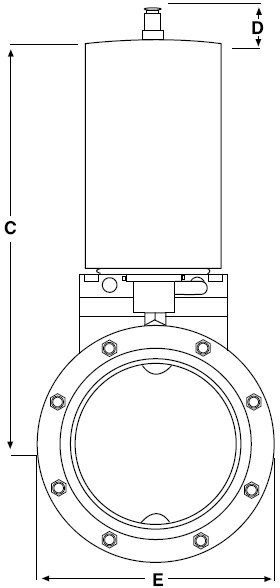

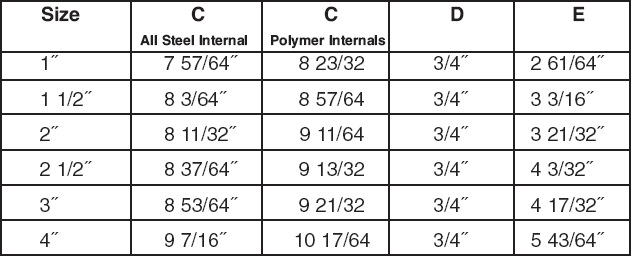

DIMENSIONAL CHART
